C-06 Double Tined Y Anchors

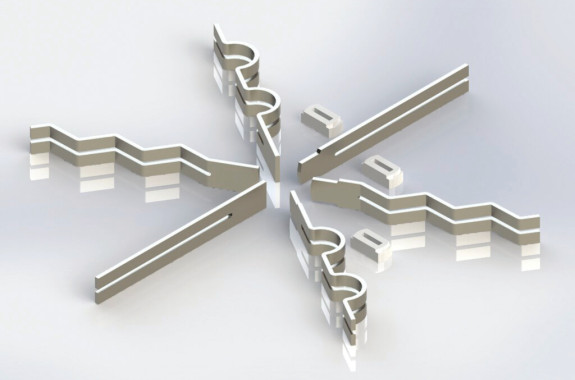

The tined Y anchors are flat-sectioned refractory anchors for many different applications, mostly light to medium refractories. The tines are bent outwards after welding and commonly after the installation of a backup layer. Type A anchors are suitable for light-density refractory concrete. Type B and C have corrugations that offer excellent refractory retention. We would recommend that you use reinforcing fibers in your refractory material. The anchors can be hand welded or Rapid Arc Welded onto the steel casing. After welding, a backup layer can be pushed over the tines and against the steel casing. The tines can be bent out, which will increase the transition of the forces in the refractory concrete onto the anchors and casing.

C-06 Double Tined 'Y' Anchors

C-06 Double Tined Y Anchors

YHA YHA example

YHA

YHA.B/T-L(S)-alloy

YHB YHB example

YHB

YHB.B/T-L(S)-alloy

YHC

YHC

YHC.B/T-L(S)-alloy

YRA

YRA

YRA.B/T-L(S)-alloy

YRB

YRB

YRB.B/T-L(S)-alloy

YRC YHR example

YRC

YRC.B/T-L(S)-alloy
