How can large-scale refractory anchor installations move beyond the limitations of traditional hex metal, while improving execution speed, reducing risks, and achieving more predictable results?
Every refractory anchoring solution starts with on-site constraints. Like SpeedHex® 3, the foundation of the SpeedHex® system, SpeedHex® 6 was developed in response to recurring issues observed during refinery turnarounds, especially where conventional hex mesh introduces risk instead of reliability.
Developed as an evolutionary step, it enables reliable anchoring across extensive repair zones in less critical applications, while SpeedHex® 3 remains the solution for the most demanding, high‑stress areas.
Over the past decade, a fundamental shift in turnaround conditions has taken place. Petrochemical facilities are operating under stricter standards, adoption of new technologies has accelerated, and experienced welders are increasingly scarce. In this environment, anchoring can no longer be treated as a standalone product decision. It must be evaluated as a system, because long-term refractory performance depends on how multiple engineering factors, such as anchor design, welding method, material selection, and installation conditions, work together. SpeedHex® 6 reflects this shift: a market-driven evolution informed by repeated field input and refined through practical execution requirements, where customers are direct contributors to the solution itself.
SpeedHex® 6 carries forward the core philosophy behind the SpeedHex® system. Load distribution, deformation control, and long-term lining integrity depend on how anchor design, installation pattern, and execution method interact over time. The objective is not short-term installation success under ideal conditions, but durability that holds under real turnaround scenarios and repeated thermal cycling.

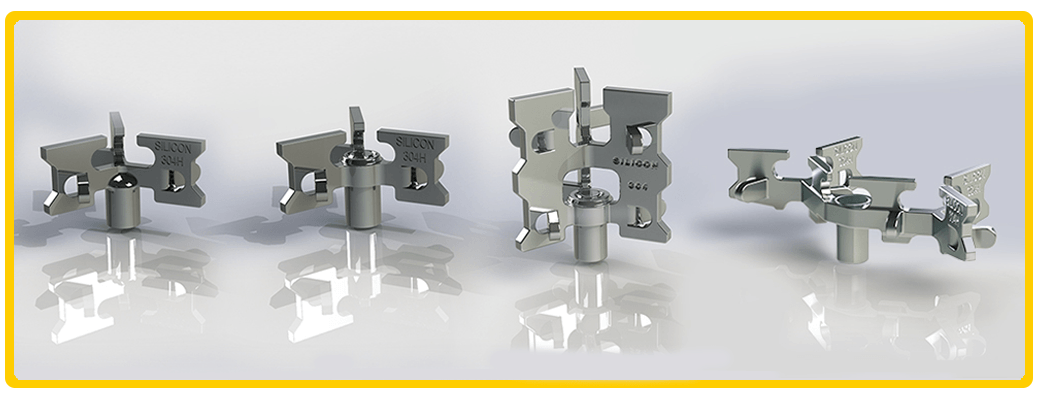

SpeedHex® 6 is fully compatible with the entire SpeedHex® family, allowing it to be applied seamlessly alongside SpeedHex® 3 and related system components. This compatibility ensures that anchor selection can be adapted to the application and execution strategy without compromising overall system integrity.
SpeedHex® 3 is the foundation of the SpeedHex® system and remains the reference solution for critical, high‑stress zones where refractory linings are exposed to severe abrasion and thermal cycling. Its design is engineered to maximize refractory retention and crack containment in areas where failure consequences are highest. In these demanding environments, SpeedHex® 3 continues to set the benchmark for structural control and long‑term lining integrity.
Building on these proven fundamentals, SpeedHex® 6 refines the same design logic for moderate‑stress but extensive repair areas. Where SpeedHex® 3 deploys two units to maximize retention strength, SpeedHex® 6 achieves the same functional anchoring with a single stud. This evolution is particularly relevant where labor availability is limited and turnaround windows are constrained.
The resulting value on site is straightforward and measurable:
50% fewer welds
Faster installation rates
Smaller installation teams
Available in dual-alloy configuration (stud/top)
Lower installed cost per area
As with any refractory anchoring solution, your selection should be driven by application conditions, turnaround constraints, and the failure mechanisms you aim to control.

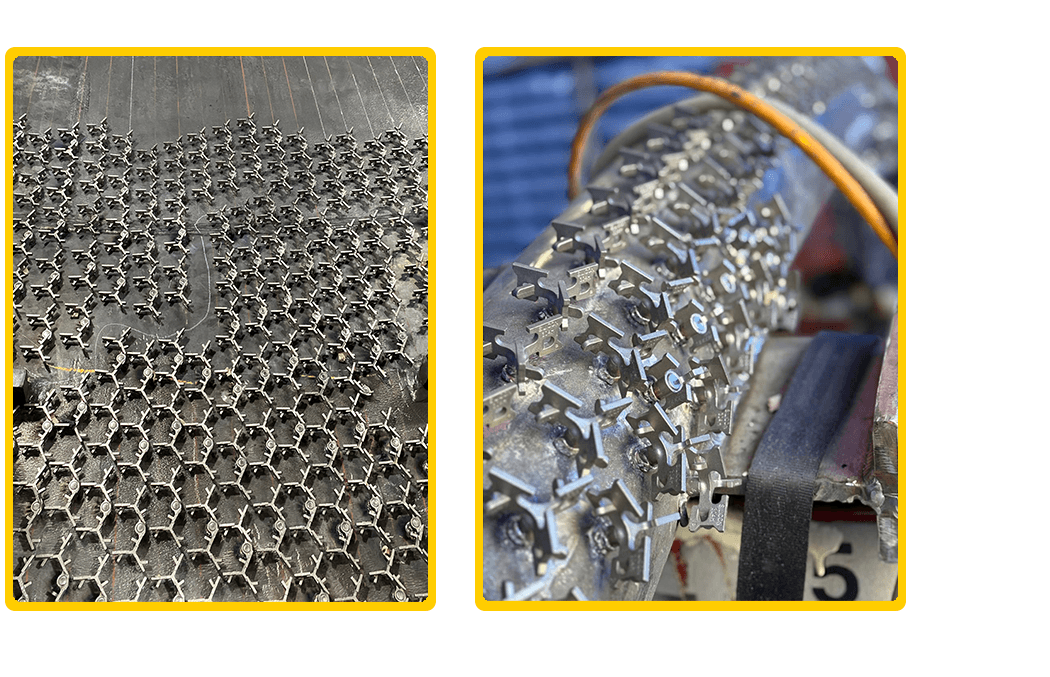

Choose SpeedHex® 6 (left) when installation speed and weld reduction are a priority.
Choose SpeedHex® 3 (right) for critical areas with high thermal stress and deep abrasion, when its configuration better suits vessel geometry, access limitations, or the established execution plan.
When schedules tighten, procurement discussions should not focus on unit price alone. In refractory anchoring, this approach frequently misses the real cost drivers. Failures originate from execution quality and the consequences of rushed or inconsistent installation.
A Total Cost of Ownership perspective brings these factors back into focus:
installation speed
team size
lining stability over time
rework and repair frequency

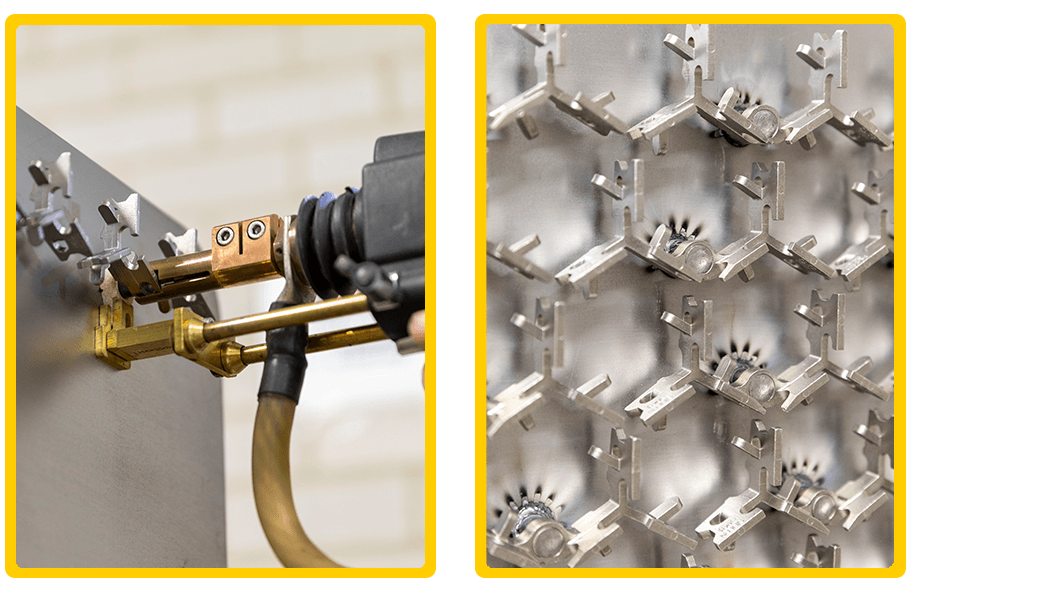

SpeedHex® 6 was engineered with these hidden costs in mind. By reducing weld count and simplifying installation, SpeedHex® 6 enables effective execution with smaller, more focused teams, directly lowering labor costs while improving schedule control.
See how SpeedHex® 6 performs under real unit conditions. Download the case study from a refinery turnaround in Channahon, Illinois (USA) and learn how turnaround teams are applying this new solution to improve execution speed while maintaining structural integrity.
